Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.

FishReveal™

Get the best of Lowrance® CHIRP sonar and DownScan Imaging™ on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Designed for Clarity

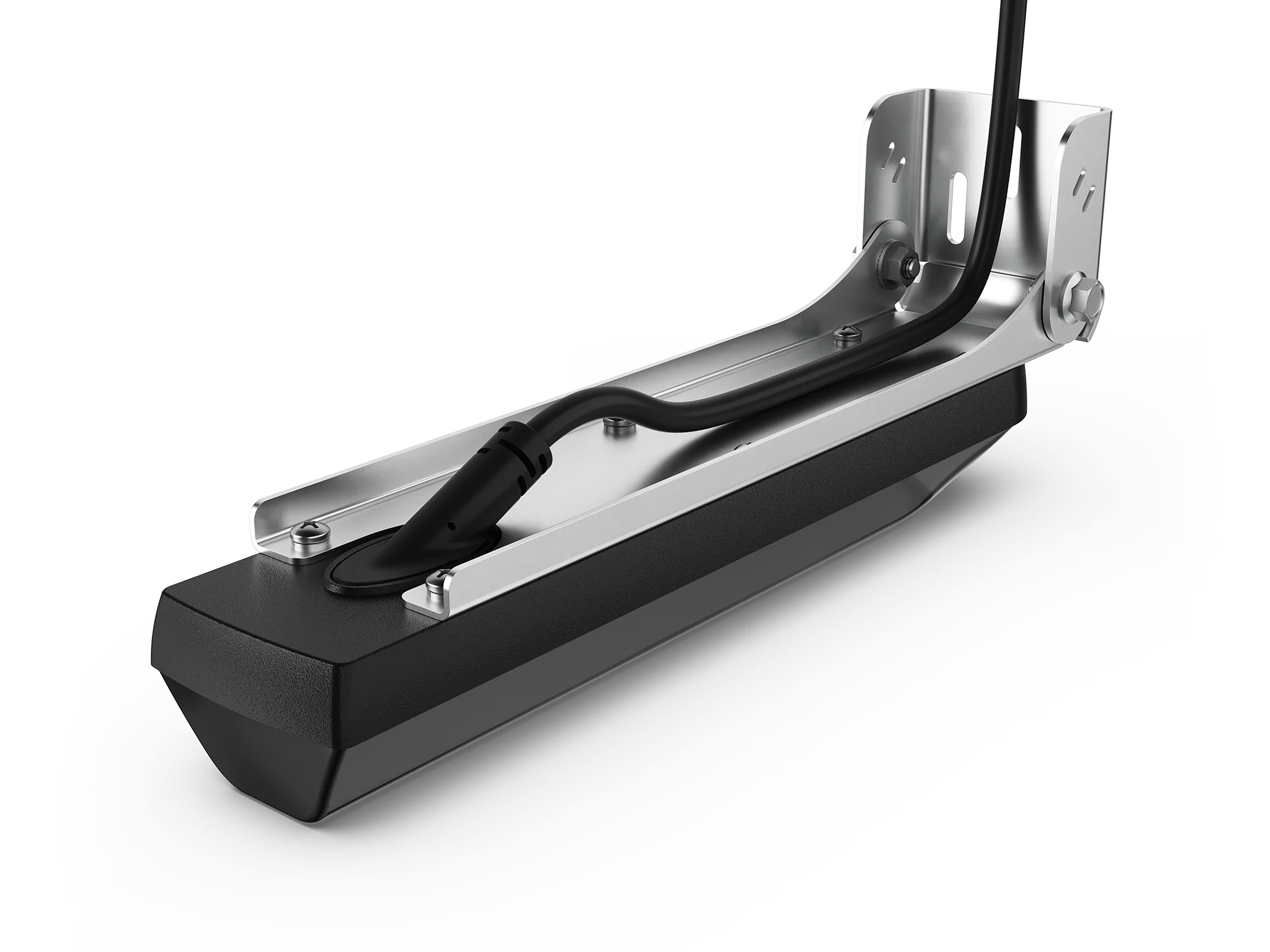

The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.

• High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
• Lowrance® CHIRP with superb clarity and target separation
• FishReveal™ DownScan view makes fish identification easy
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
• Smart transducer design boosts signal clarity
• Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays
