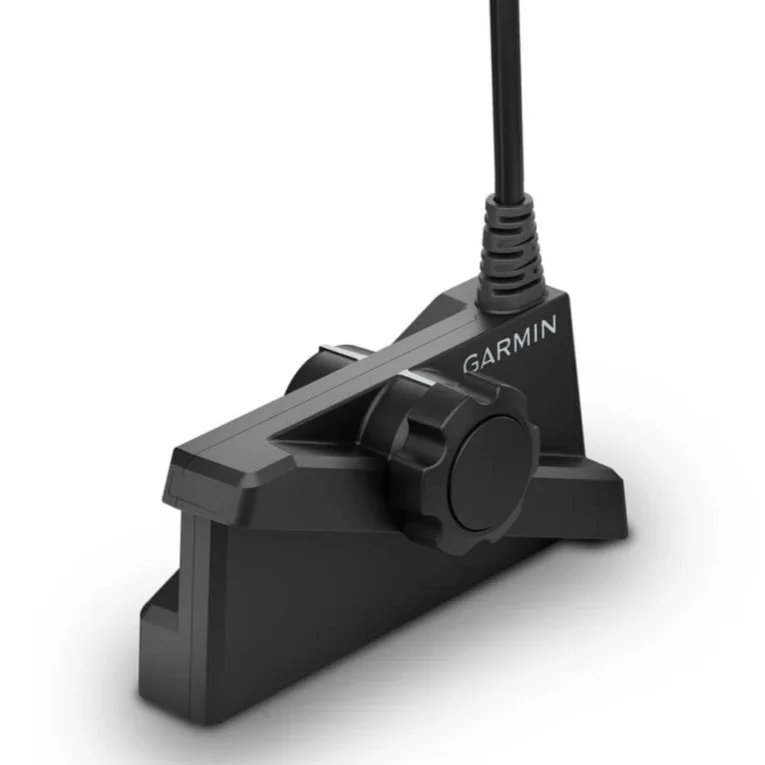

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.





• LiveScope Plus LVS34 transducer
• Perspective mount (LiveScope Plus LVS34 Transducer Only)
• Trolling motor barrel mount
• Shaft mount
• Documentation



General
DIMENSION	6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm)
WEIGHT	2.25 lbs (1.02 kg)
WATERPROOF	IPX7
TRANSDUCER BEAMWIDTH	20° x 135°
TRANSDUCER CABLE LENGTH	20 ft
TRANSDUCER NUMBER OF PINS	21
TEMPERATURE RANGE	Operating: 0 C to 40 C

Sonar Features & Specifications
FREQUENCY	530 - 1,100 kHz
MAXIMUM DEPTH	Down and Forward: 200’ (61.0 m)
SONAR TYPE	Live
TARGET SEPARATION @100'	14"
PERSPECTIVE MODE MOUNT INCLUDED

Connections
GARMIN MARINE NETWORK PORTS	1 (small connector)

Electrical Features
POWER INPUT	10-32 V
POWER USAGE	21 W typical, 58 W max
TRANSMIT POWER	500 W
FUSE	7.5 A
COMPASS-SAFE DISTANCE	4" (0.1 m)
